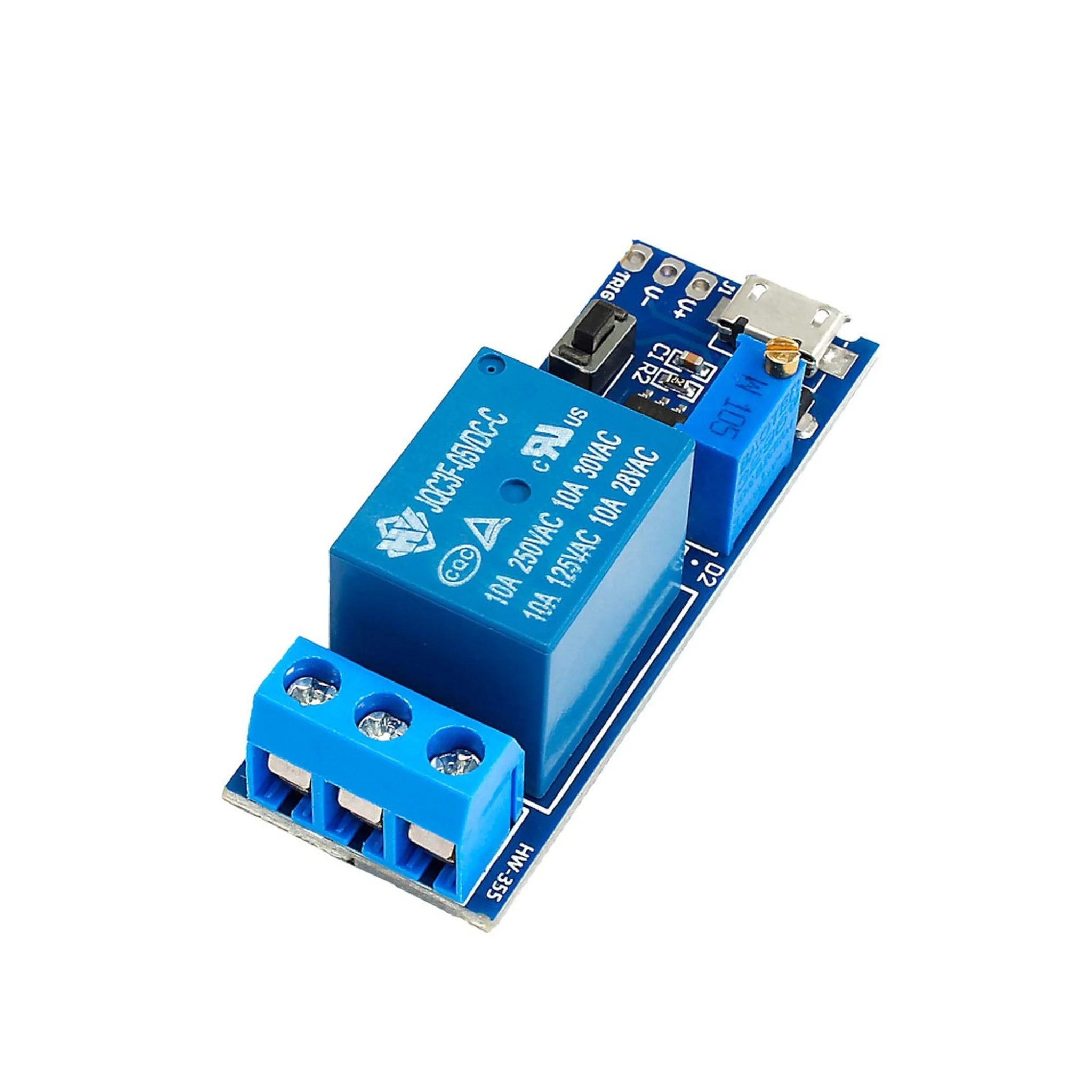

5V-30V Micro USB Power Adjustable Delay Relay Timer Control Module
Introducing the 5V-30V Trigger Delay Relay Timer Module, a versatile and efficient solution for controlling power circuits and automating your projects. This module is designed to provide precise timing control for various applications. With a wide input voltage range of 5V to 30V, it offers compatibility with different power sources. The adjustable delay time ranges from 0.1 seconds to 999 minutes, allowing you to customize timing intervals according to your specific needs. Equipped with a high-quality relay, this module can handle a maximum load of 10A, making it suitable for controlling a wide range of devices. Whether you’re working on home automation, lighting systems, or DIY projects, the 5V-30V Trigger Delay Relay Timer Module offers reliable and accurate timing control with ease.
The 5V-30V Trigger Delay Relay Timer Module stands out with its user-friendly design and comprehensive specifications. Its compact size and clear LCD display make it easy to set and monitor timing parameters. The module features a wide range of adjustable settings, including delay time, timing modes, and trigger modes, providing flexibility for different applications. With its built-in power-off memory function, it retains your settings even after a power outage, ensuring uninterrupted operation. The module also incorporates protection mechanisms such as over-current and reverse polarity protection, safeguarding both the module and your connected devices. Upgrade your automation and timing capabilities with the reliable and feature-rich 5V-30V Trigger Delay Relay Timer Module, and enjoy enhanced control and efficiency in your projects.

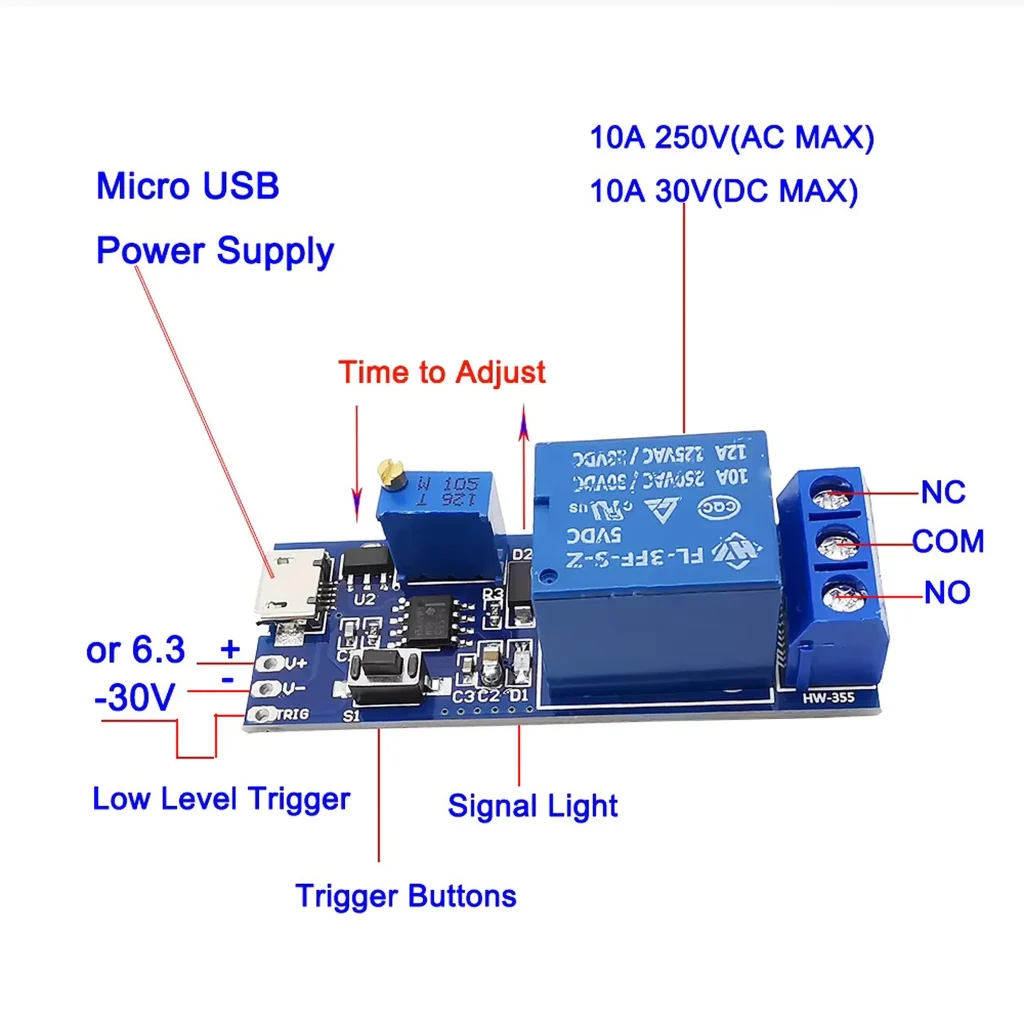

Specification of 5V-30V Trigger Delay Relay Timer Module:
- Working voltage: 5-30V
- Working mode: after power is supplied to the module, the state of the module output terminal is normally open (NO) and common terminal (COM) are disconnected, normally closed (NC) and common terminal (COM) are connected
- The time can be adjusted by the potentiometer: the default is 0-24 seconds
- Has relay pull-in indicator light
- The module can be controlled: 10A 250VAC (AC), 10A 30VDC (DC) load
- Has relay freewheel protection
- The signal end of the module is designed with a pull-up and filter circuit, which has strong anti-interference ability
- Weight: 16g
