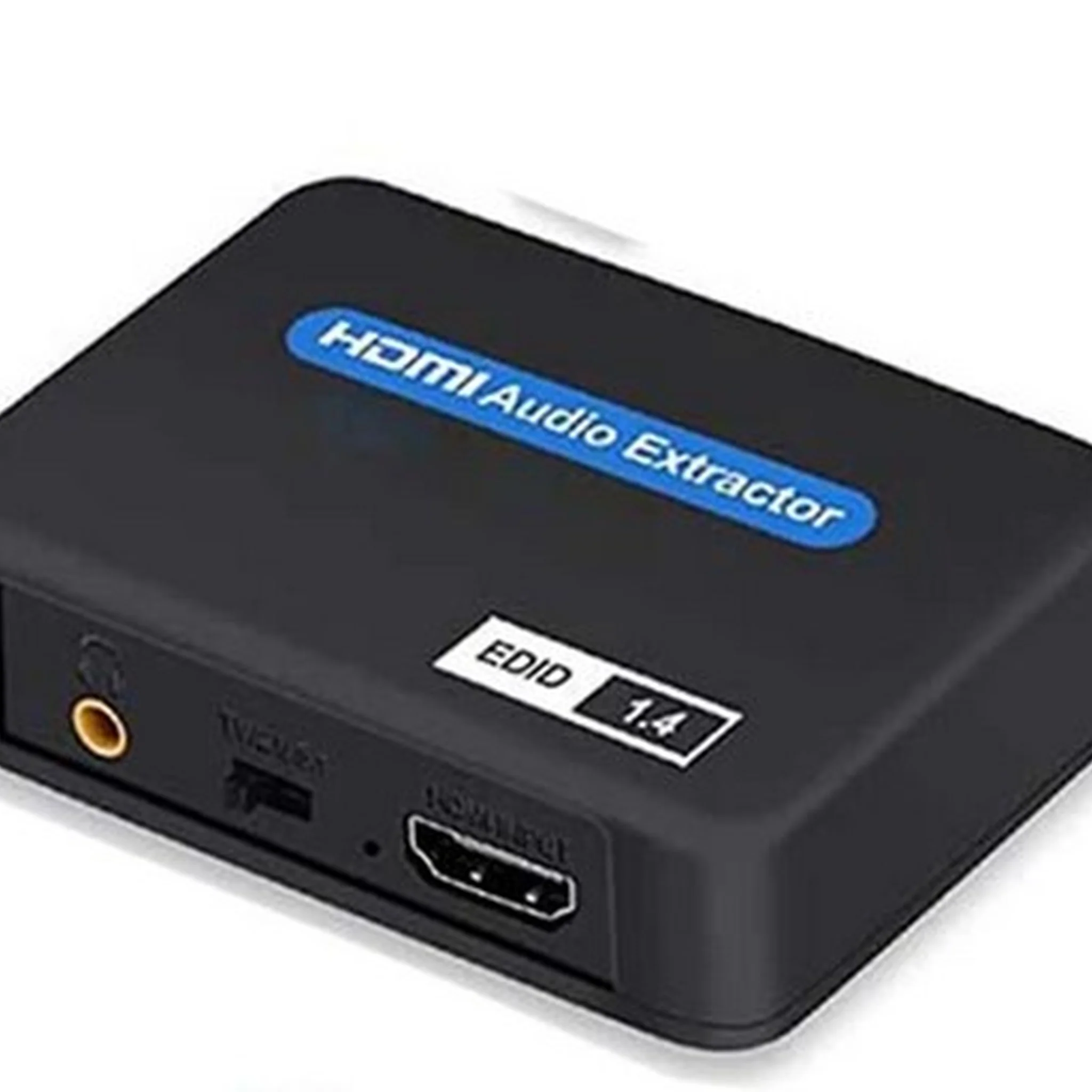

4K HDMI Audio Extractor HDMI Audio Splitter HDMI to toslink+Aux Audio+HDMI Video converter splitter

This 4K HDMI Audio Extractor extracts the audio signals from HDMI video. It supports analog stereo audio, as well as high‑definition multichannel audio streams over the S/PDIF digital optical audio output.

It supports video resolutions up to 4K@30Hz. It is fully compliant with the HDMI 1.4b and HDCP 1.4 standards.And the HDMI Audio splitter is compatible with various kinds of devices such as PS4,PS5,DVD..

Important note:

1)The HDMI Audio extractor is of 1.4B and it supports 4K@30Hz at max.

2)If your devices does not support 4K@30Hz resolutions such as PS5,PS4 Pro,Xbox series X/S, the 4K option wont be available.

    These deivces support 4K out only when the display and connected devices is of being HDMI 2.0 compliant.

3)to get 5.1CH, the video source must be 5.1CH.

4)The Audio extractor does not support HDMI ARC or Earc. And you can not connect the HDMI out to AV receiver for HDMI audio.

Features:

• Extracts audio from an HDMI video signal
• Supports stereo analog and multichannel digital optical S/PDIF audio
• Supports video resolutions up to 4K@30Hz
• Supports HDCP 1.4 and HDMI 1.4 features

What’s in the package:

HDMI Audio converter X1

USB power cable X1(power adapter is included)

User manual X1
