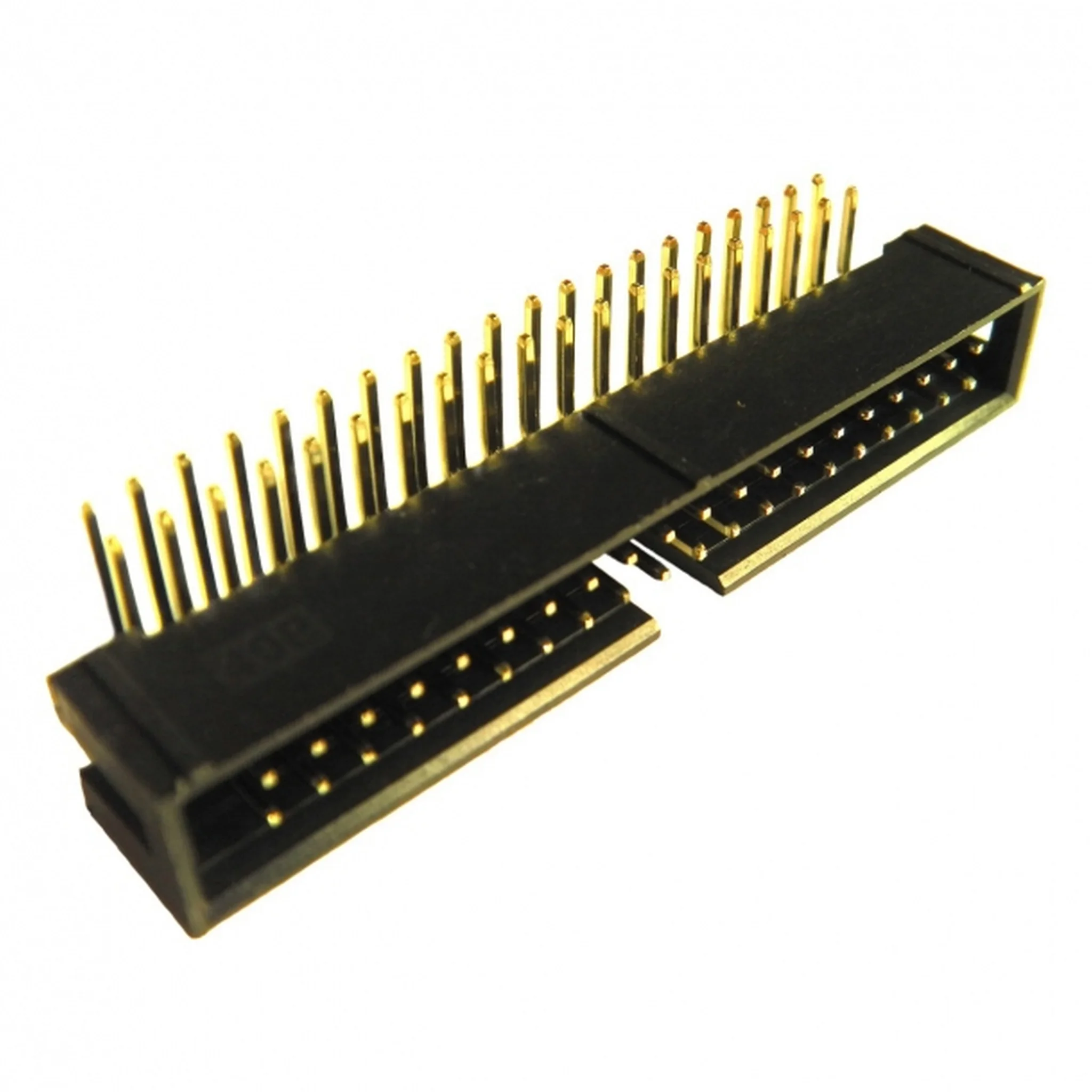

40 Pin GPIO Shrouded Box Header – 90 Degree Angle

The Raspbery Pi 40 Pin (2 x 20) GPIO Shrouded Box Header can be used to interface a female socket connector with a PCB or breadboard. The low profile, space saving design has a centre slot for the socket’s polarization bump. This is the 90 Degree Angle version e.g. the pins exit ‘sideways’ which is useful for space-saving!

Compatible With:

Raspberry Pi – Model B+
Raspberry Pi – Model A+
Raspberry Pi 2 – Model B
Raspberry Pi 3

Features:

  • Gold-plated brass contacts
  • Designed for use with Ribbon cable
  • Contact Resistance Max 20 mΩ
  • Nominal Current 3A
  • 90 Degree Angle Side Exit Type.
