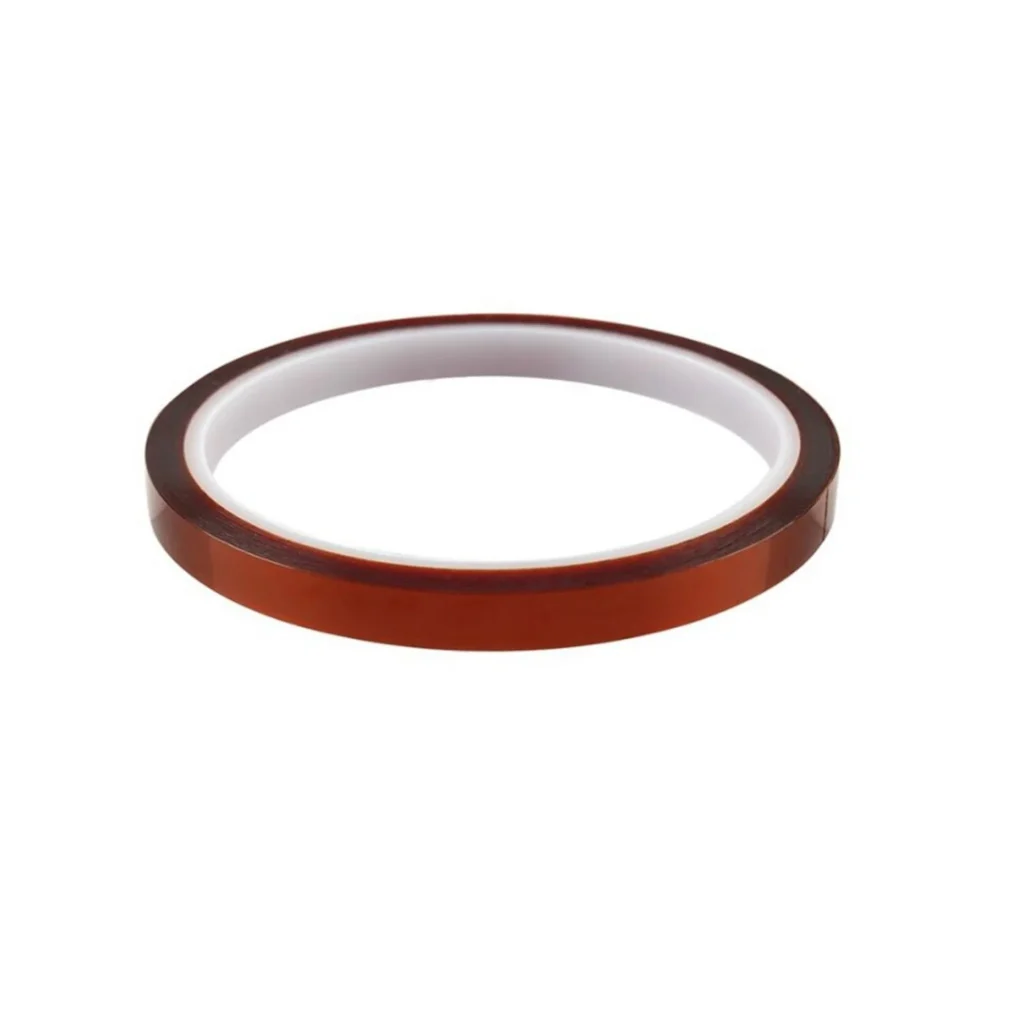

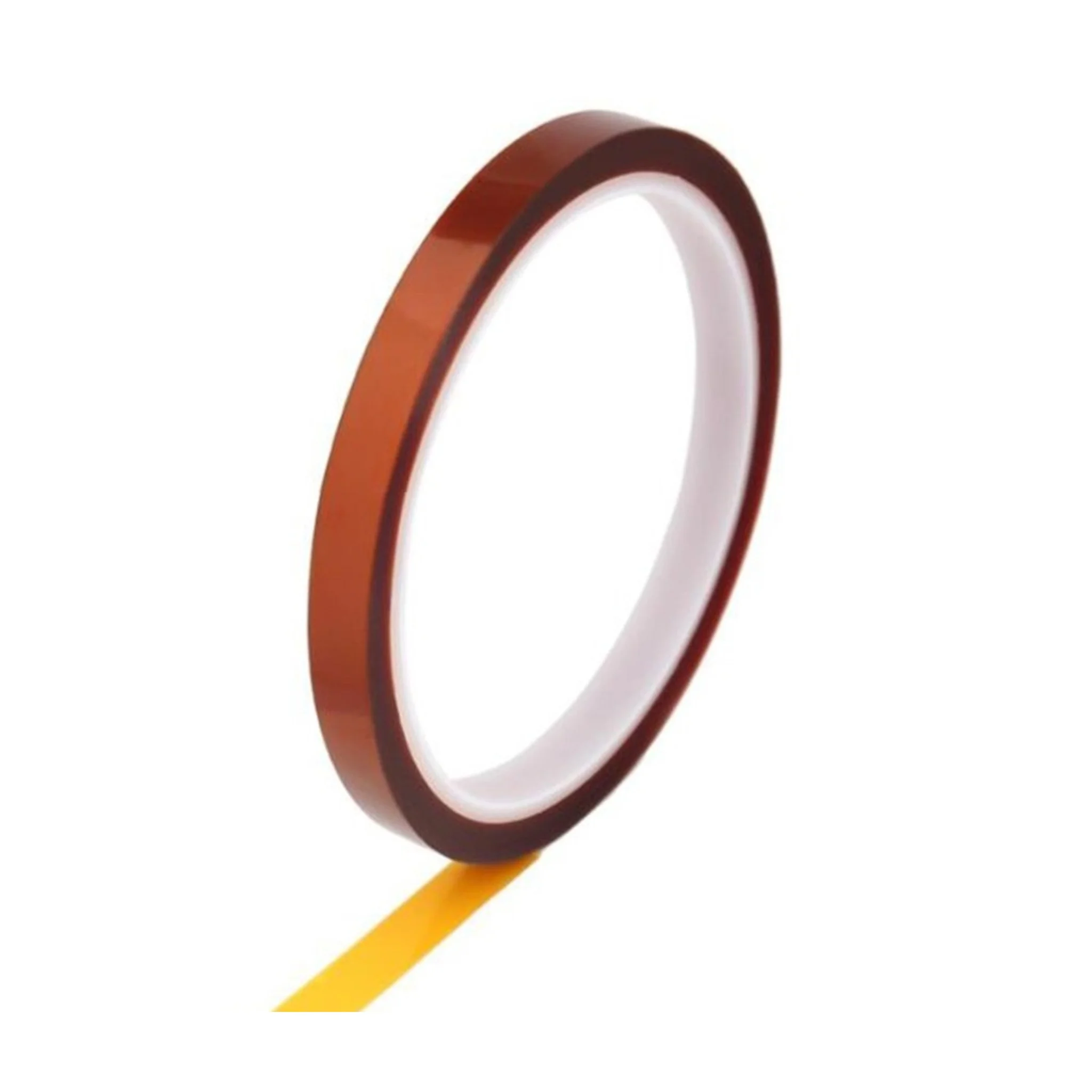

3D Brown Insulated High Temperature Resistant Tape 10mm – 27.4m

Kapton Tape, also known as Polyimide Tape, is an electrically insulating heat resistant tape that has many uses. Designed for high temperature masking applications, including the protection of circuit board gold finger contacts during wave soldering, heater bed in 3D printer. Kapton tape is a usable print surface for printing ABS/PLA thermal plastic on a Heated Bed for 3D printer. For ABS to stick to Kapton, the Kapton needs to be hot (different sources mention minimum temperatures between 80-130 °C). Also the Kapton should be free of grease, grease can be removed with acetone or a propane torch.

Features/Specs:

    Thickness:0.05mm
    Elongation:50%
    Tensile strength:≥42N/25mm
    Peeling force:≥26N/25mm
    Initial adhesion:24#
    Sticking force:48H
    Package:roll/barrel
    One-side self-adhesive
    Length: 27.4 Meter
    Width: 10 mm
    Approx Weight: 20gm

Application:

    Masking on circuit board during soldering
    Masking for vacuum deposition
    Holding samples or parts in high vacuum
    Positioning tape for cryo applications
    Electrical insulation on transformer, coil, and electromotors
