2.8inch Touch Display Module for Raspberry Pi Pico, 262K Colors, 320×240, SPI

€34.00

Product Weight: 0.0400KG

Add To Wishlist Add To Compare

Product Details

  • SKU : 48-19804
  • Stock : Available

Guaranteed Safe Checkout

Raspberry Pi
Raspberry Pi

Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615

2.8″ Touch Display Module for Pico

resistive touch controller XPT2046, ST7789 driver, using SPI bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo



Features at a glance

  • 320×240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
  • Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
  • MicroSD card slot for storing images and direct displaying them easily
  • Programmable backlight control, power saving
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage 5V Resolution 320×240 pixels
Communication Interface SPI Display size 57.60 × 43.20 mm
Display Panel IPS Pixel size 0.18 × 0.18 mm
Driver ST7789 Dimensions 70.20 × 50.20 mm
Touch Controller XPT2046

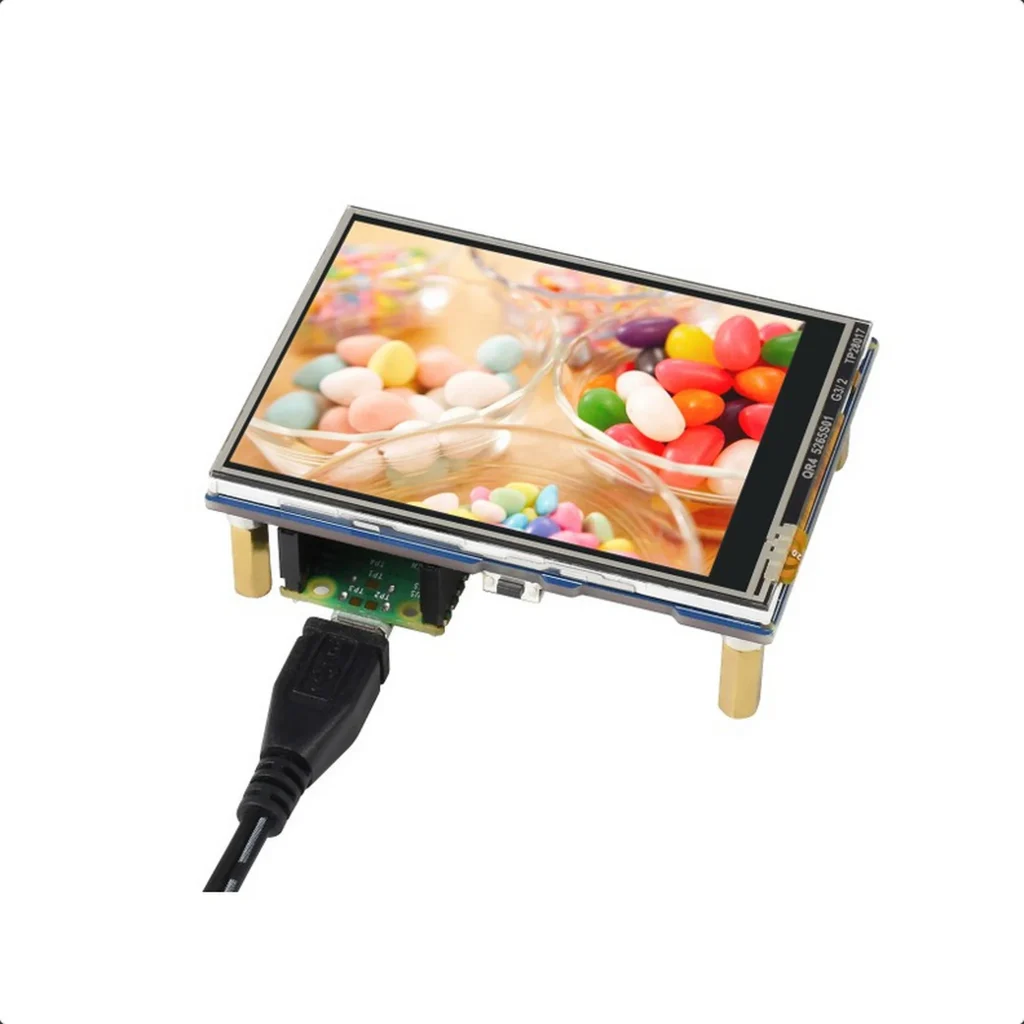

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico

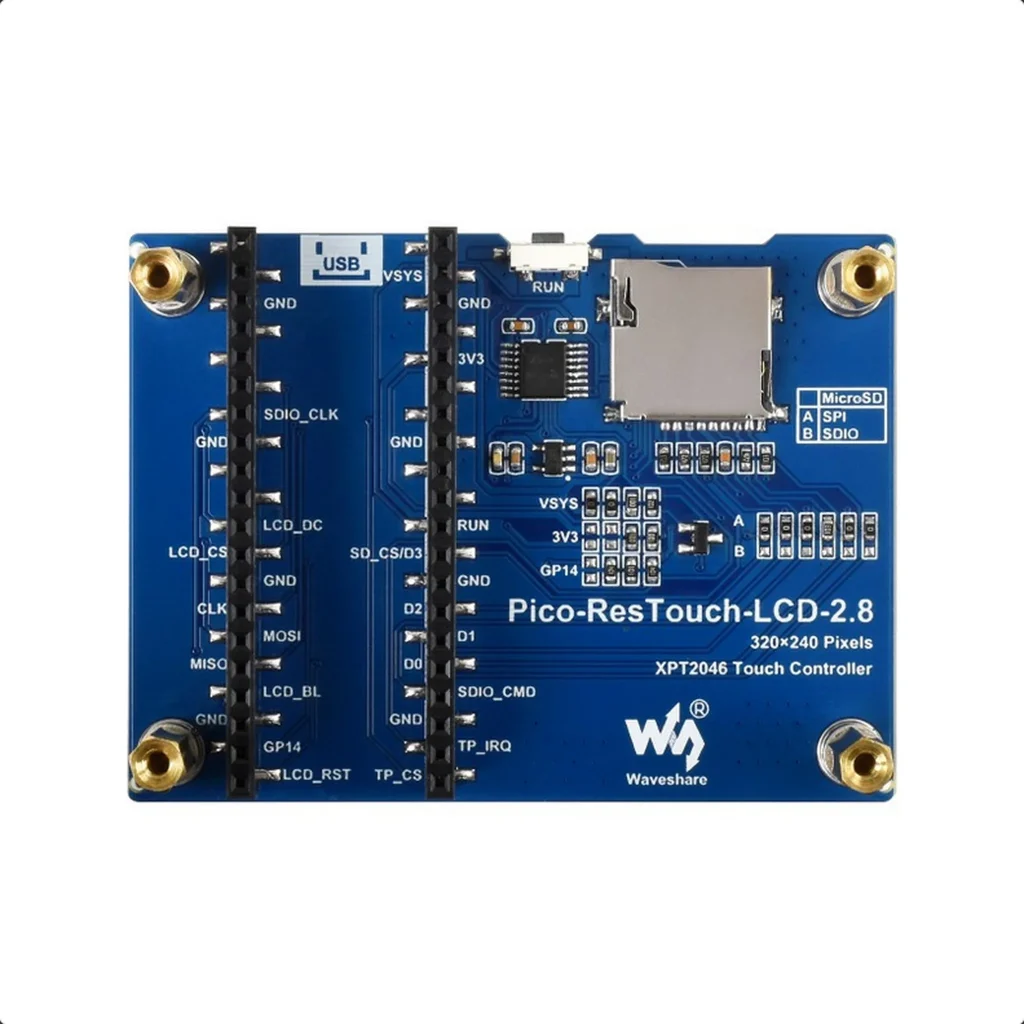

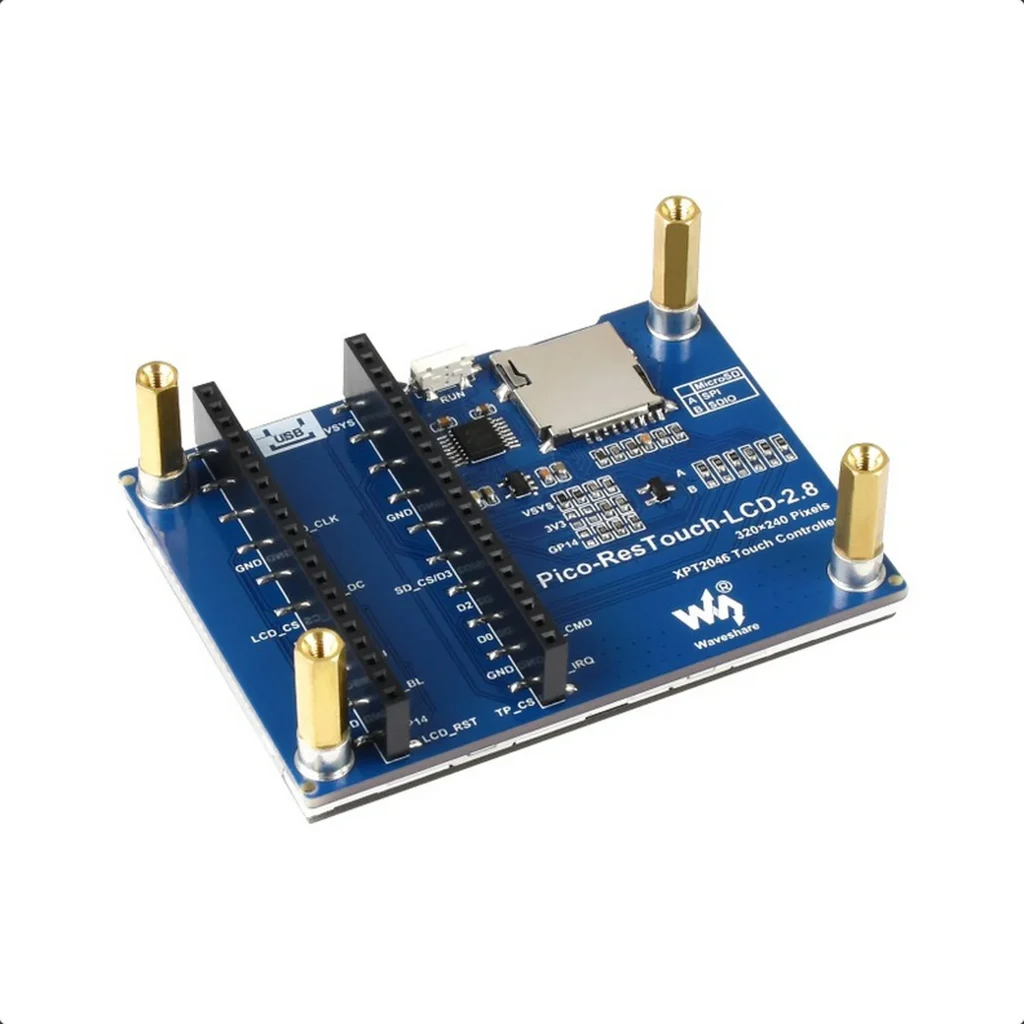

What’s On Board

  1. Rapsberry Pi Pico header
  2. MicroSD card slot
  1. XPT2046
    resistive touch controller
  2. RT9193-33
    3.3V linear voltage regulator
  3. Pico reset button

Pinout definition

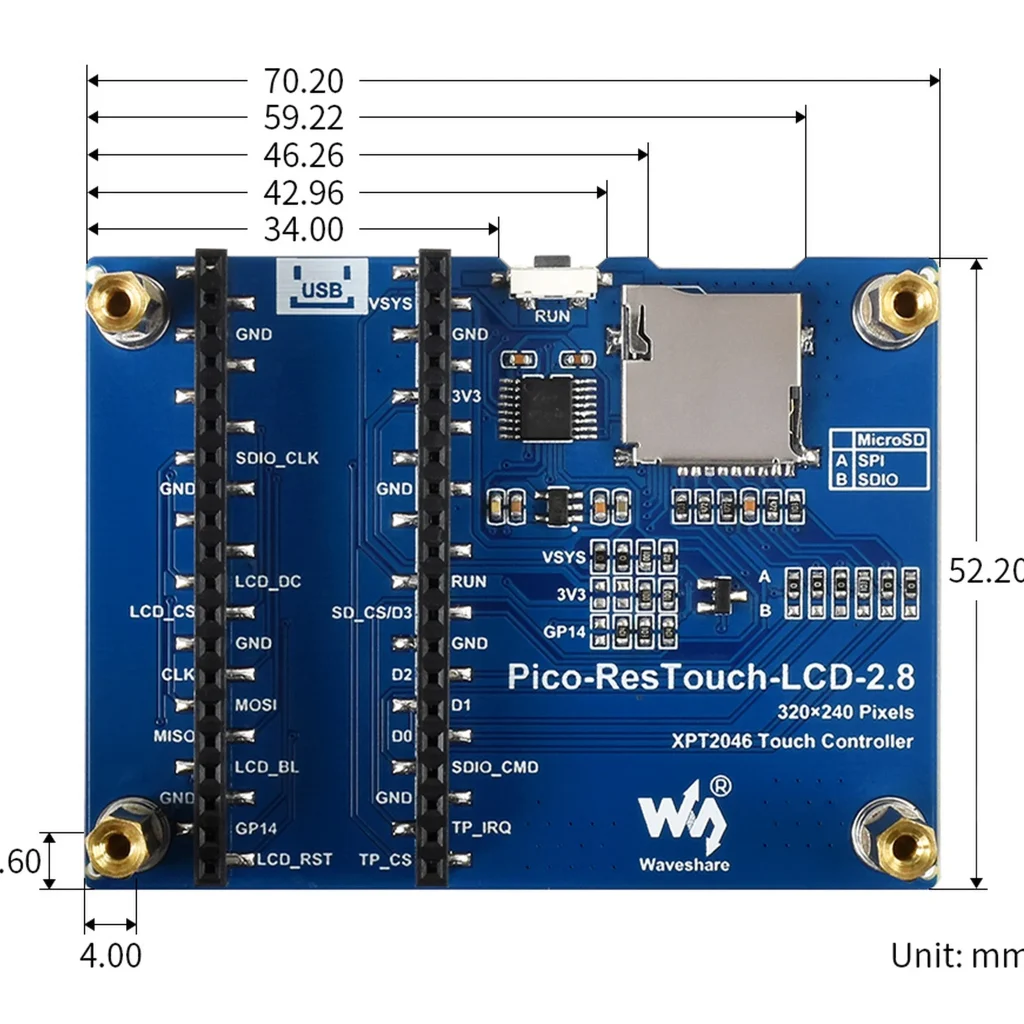

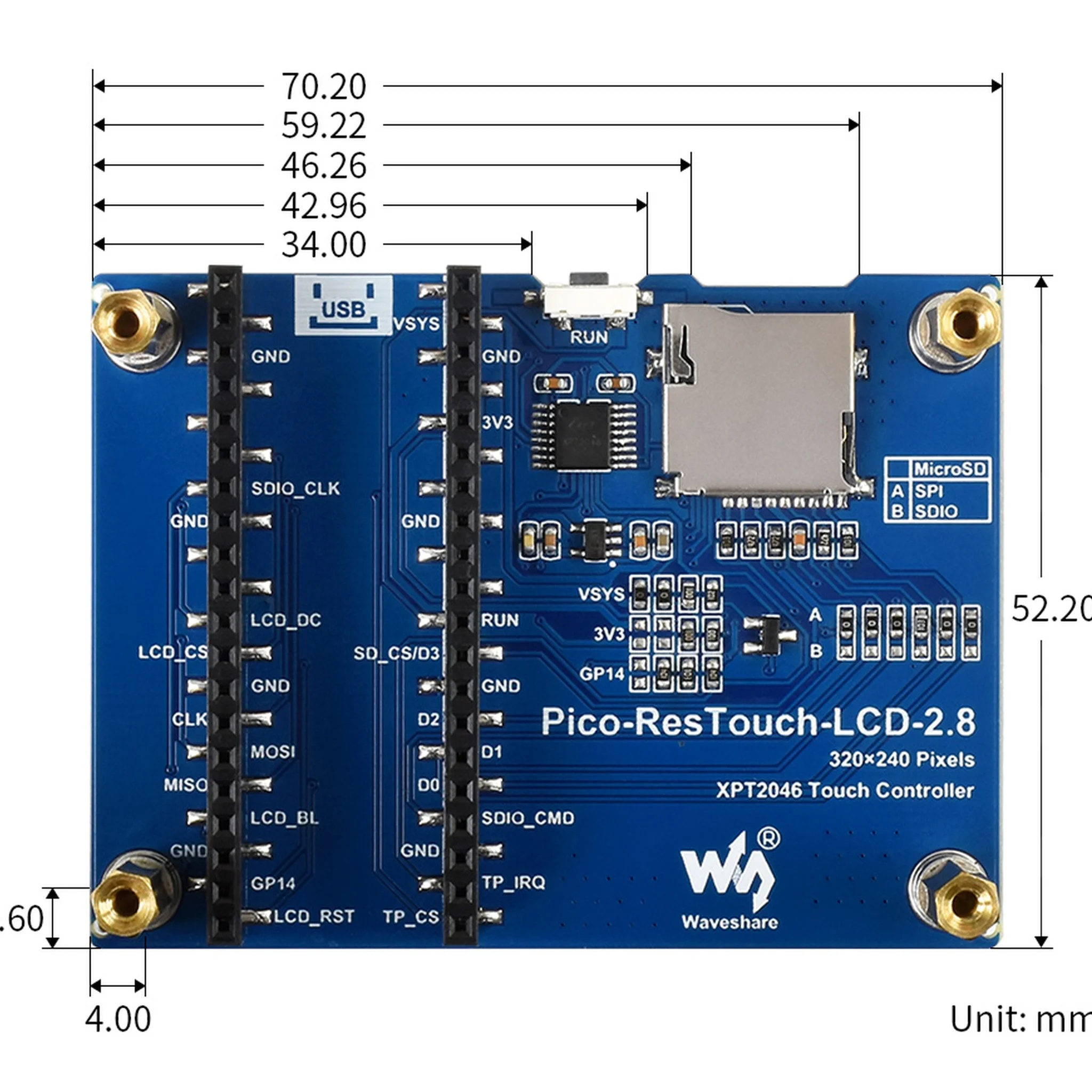

Outline dimensions









Inches
  • • 2.8
Κατάσταση
  • • New
