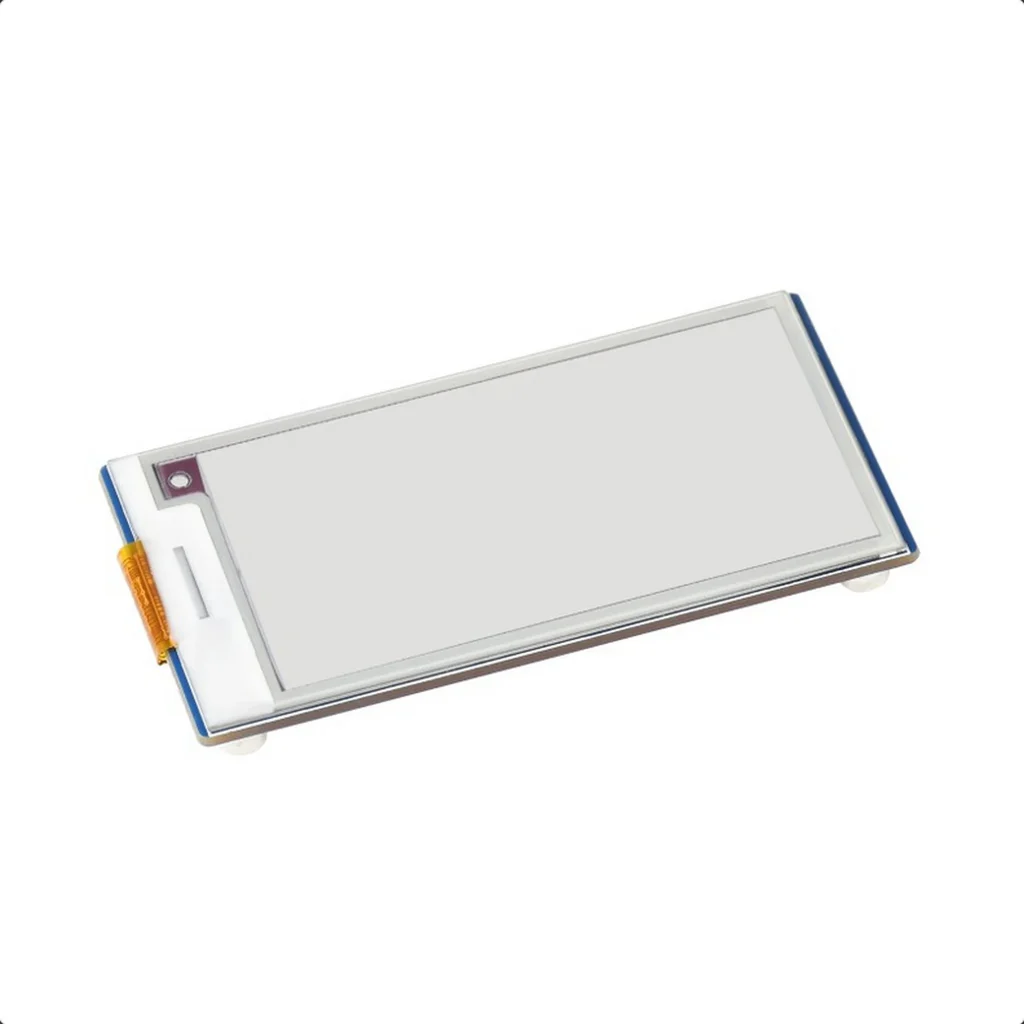

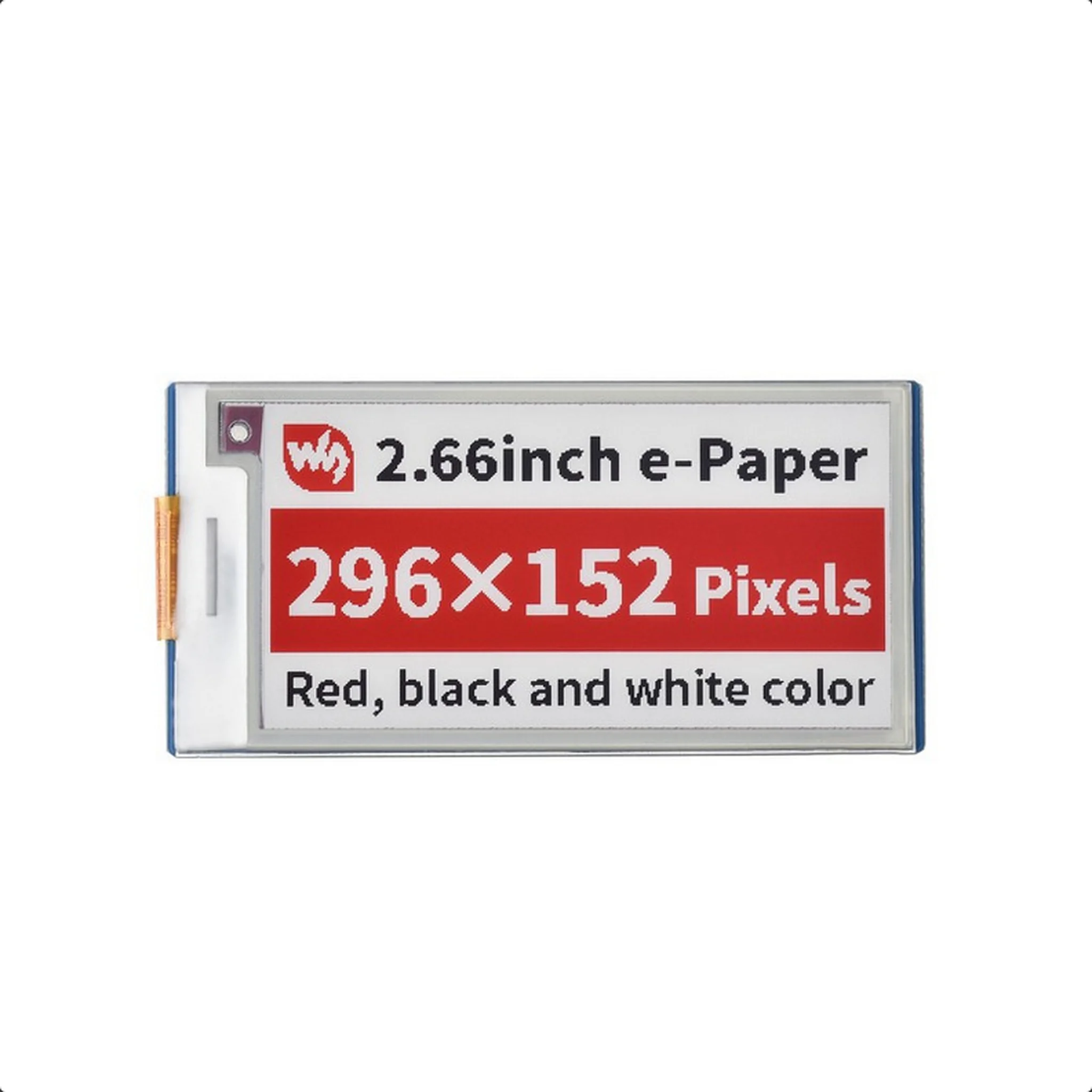

2.66″ e-Paper Module (B) for Pico
low power, wide viewing angle, paper-like effect
Ideal for price tags, shelf labels, industrial instruments…
Features at a glance
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, requires minimal IO pins
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
operating voltage
3.3V
display color
red, black, white
interface
3-wire SPI, 4-wire SPI
grey scale
2
outline dimensions
74.00 × 37.50mm
full refresh time
15s
display size
60.088 × 30.704mm
refresh power
42.4mW (typ.)
dot pitch
0.203 × 0.202mm
standby current
resolution
296×152 pixels
viewing angle
>170°
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

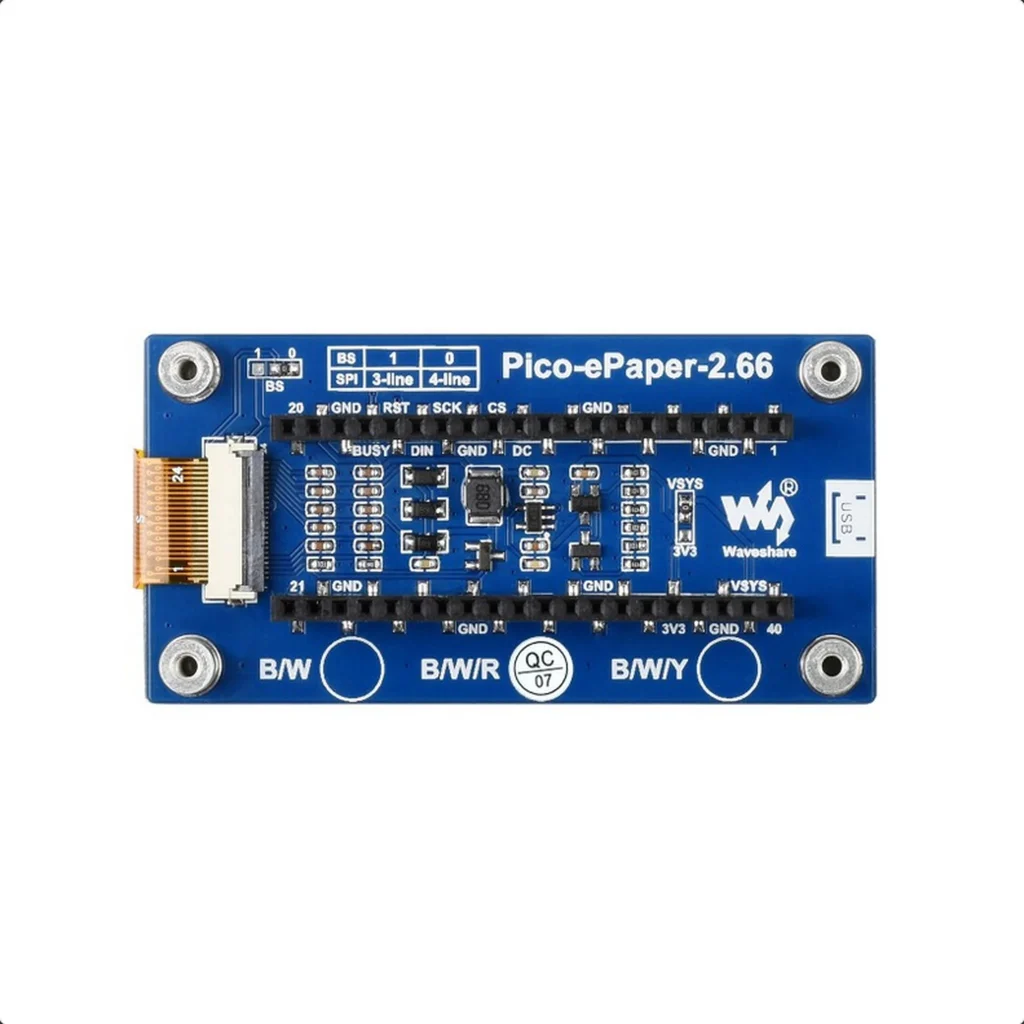

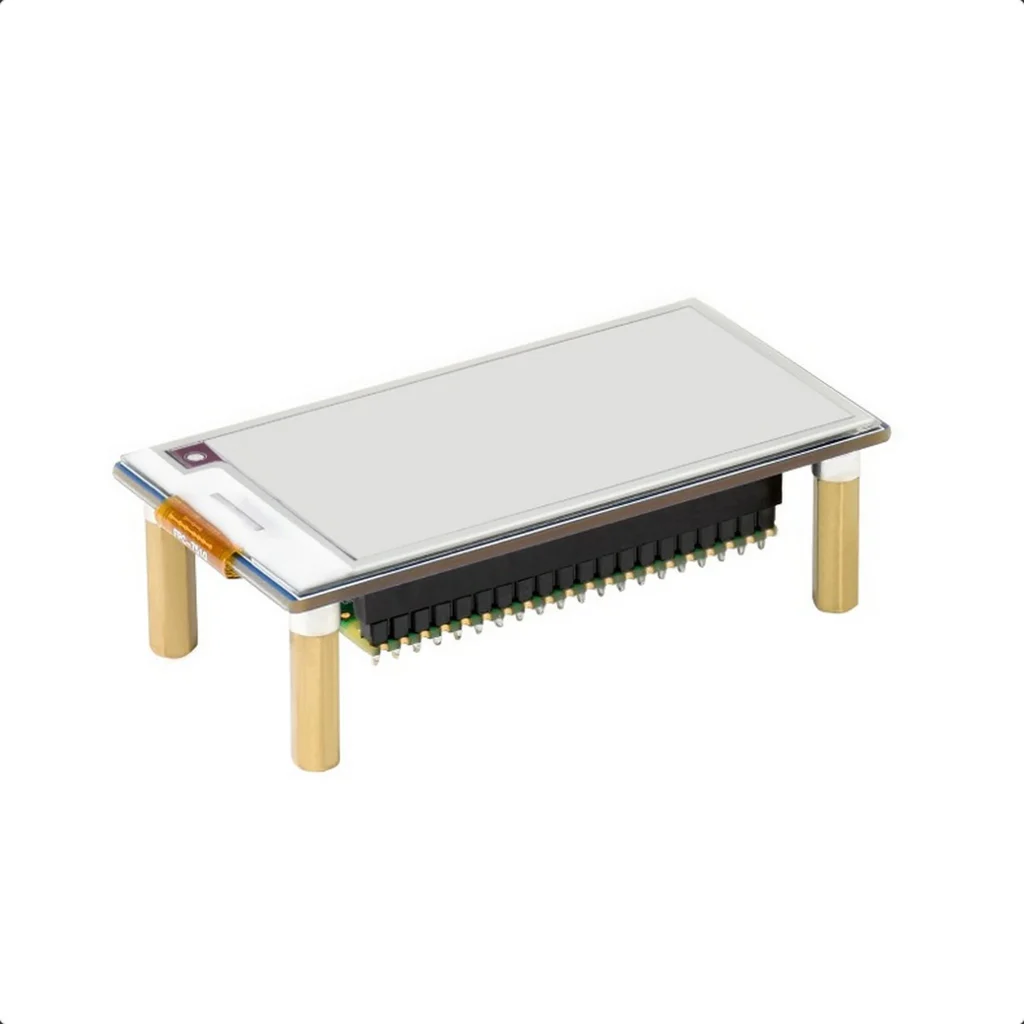

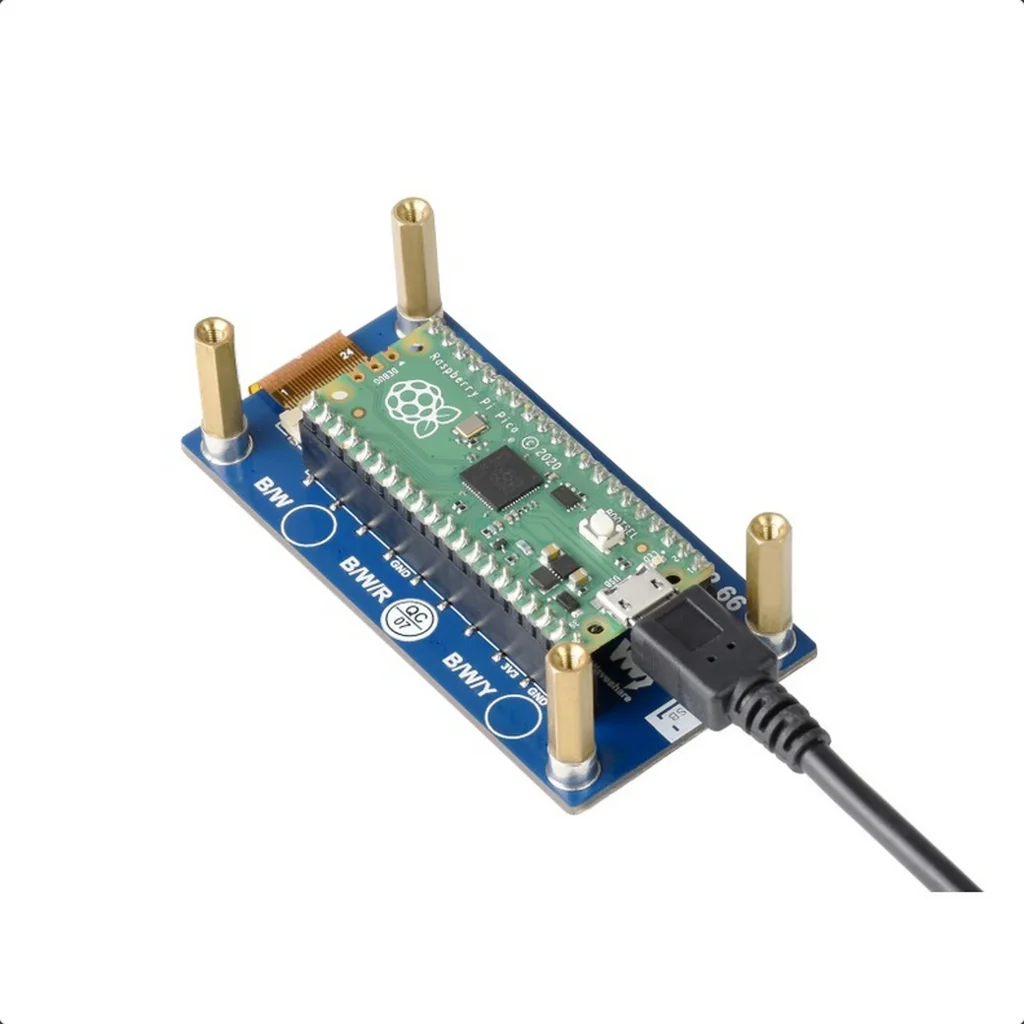

Raspberry Pi Pico header compatibility
onboard female pin header for direct attaching to Raspberry Pi Pico
