1*4 Matrix Array 4 Key Membrane

1*4 Matrix Array 4 Key Membrane

€2.00

Product Weight: 0.0060KG

Add To Wishlist Add To Compare

Product Details

SKU : NSY0272-1
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

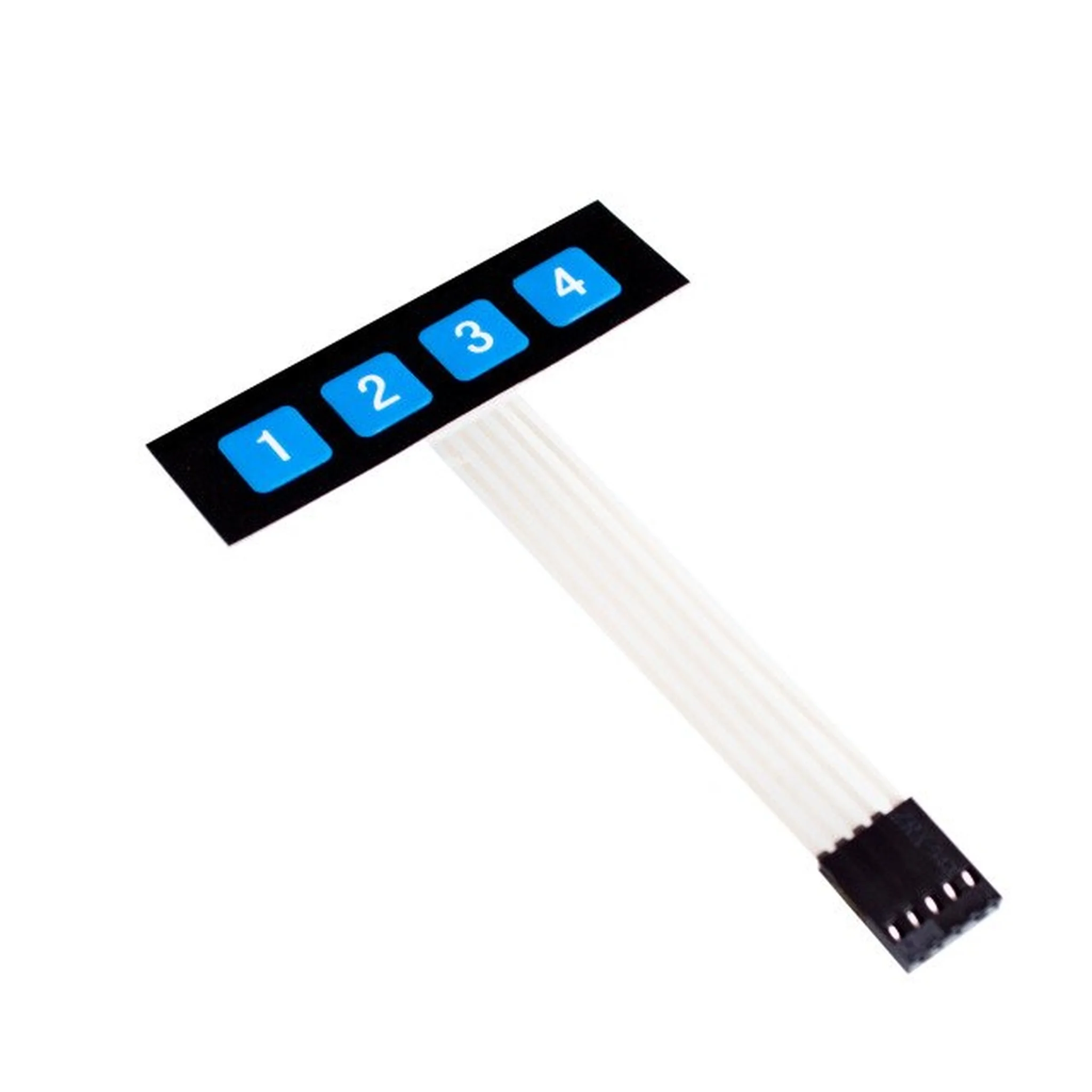

1*4 Matrix Array 4 Key Membrane

Specification:

Mount style: self-adherence
Pad size: 69 x 20mm
Cable length: 4.2inch/106mm (include connector)
Connector: DuPont 5 pins
Mount style: self-adherence
Circuit rating(max): 3.5V(DC) 100mA,1W
Contact resistance: 10Ω – 500Ω
Insulation resistance.: 100MΩ 100V
Electric shock jitter: <5ms
Dielectric strength: 250VRms (50 – 60Hz 1min)
Life expectancy: 1 million times
Operation temperature: -20°C to +40°C
Storage temperature: -40°C to +80°C
Storage humidity: 70% – 90%
