12V SOLENOID LOCK

As we know, solenoids are basically electromagnets, a big coil of copper wire with an armature in the middle. As the coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull from one end.

This solenoid is nice and strong as it has a slug with a slanted cut and a good mounting bracket. Basically, it is an electronic lock. Normally the lock is active so you can’t open the door because the solenoid slug is in the way. It does not use any power at this state. However, when 9-12VDC is applied, the slug pulls in and the door can be opened.

This solenoid in particular is nice and strong, and has a slug with a slanted cut and a good mounting bracket. It’s basically an electronic lock, designed for a basic cabinet or safe or door. Normally the lock is active so you can’t open the door because the solenoid slug is in the way. It does not use any power in this state. When 9-12VDC is applied, the slug pulls in so it doesn’t stick out anymore and the door can be opened.

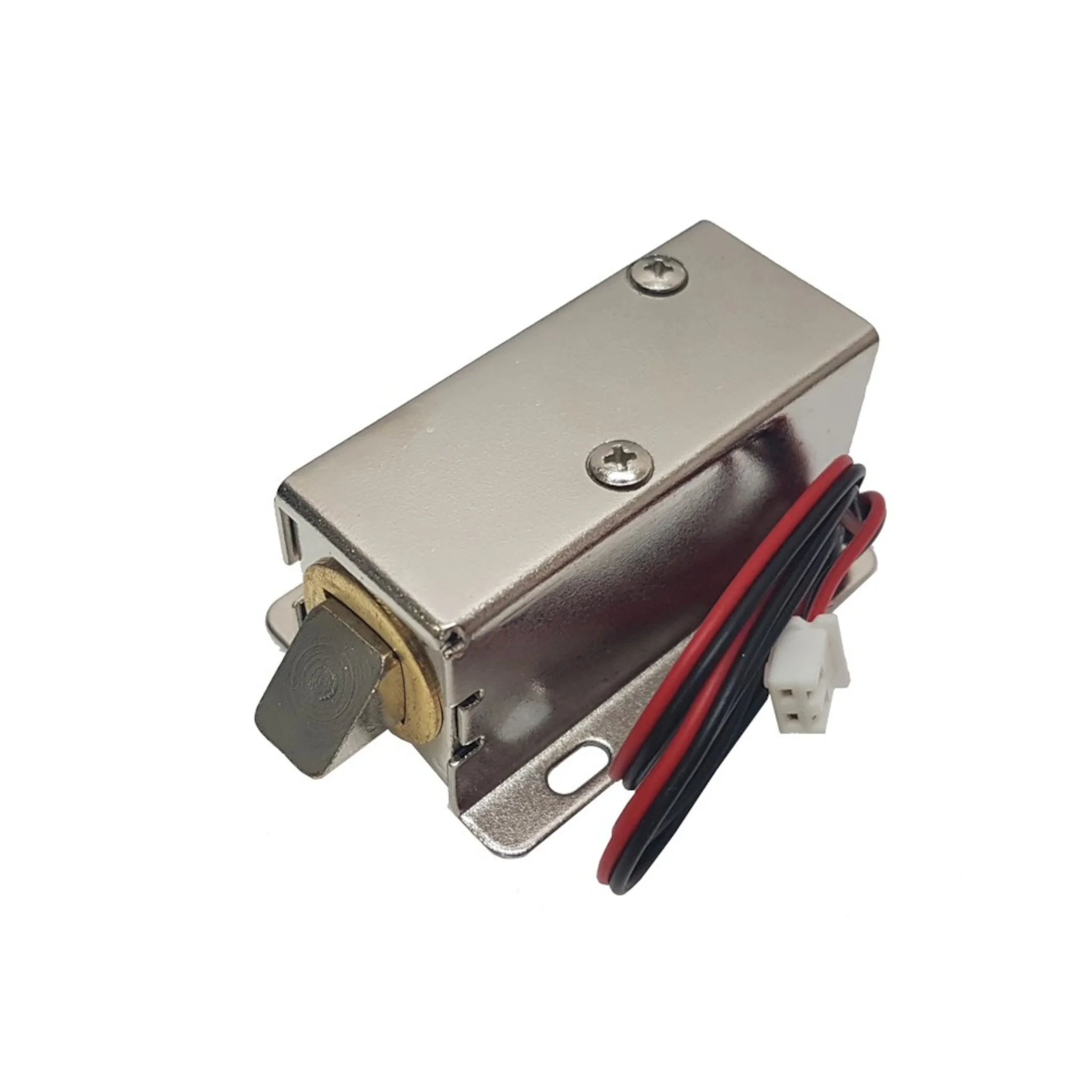

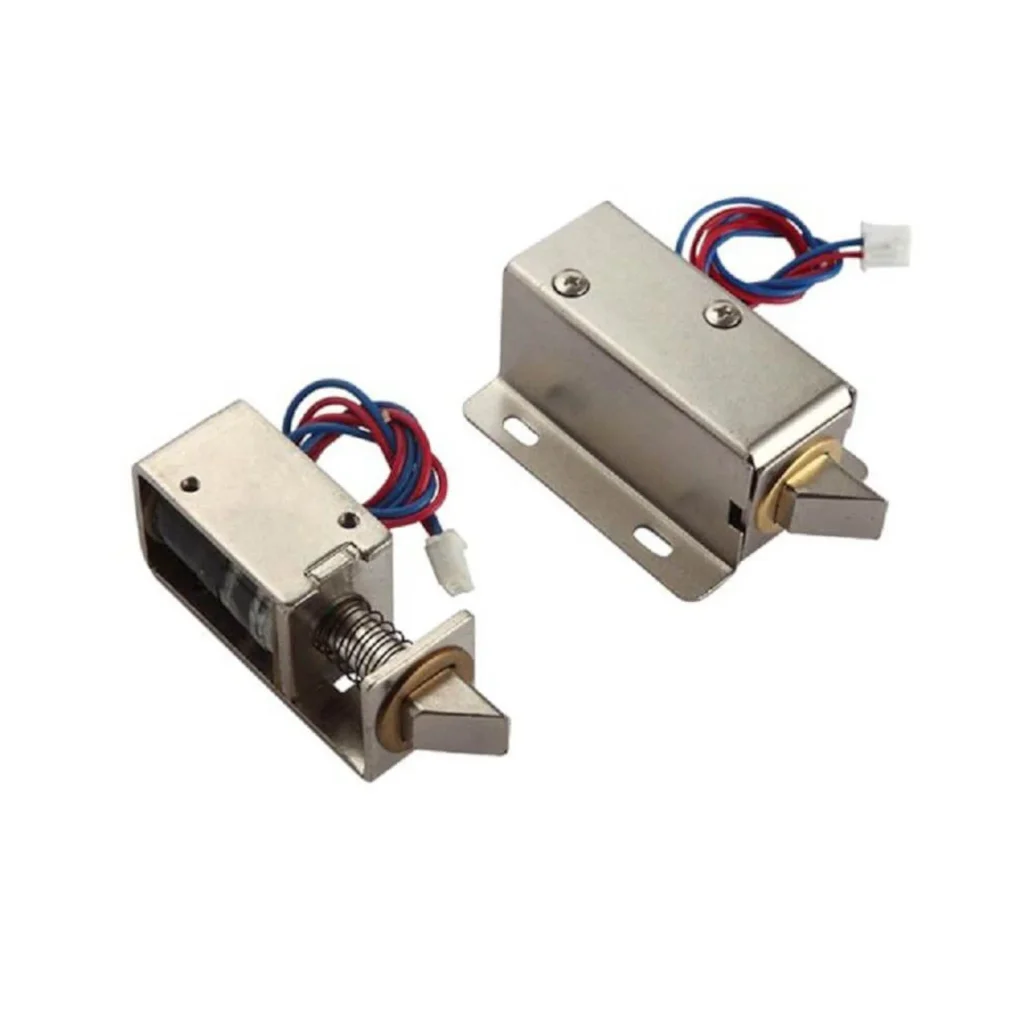

The solenoids come with the slanted slug as shown above, but you can open it with the two Phillips-head screws and turn it around so its rotated 90, 180 or 270 degrees so that it matches the door you want to use it with.

Specification:
    Voltage: 12VDC
    Current: 0.6A
    Size: 53 x 26 x 23mm
    Weight: 142g
    Latch telescopic length: 10mm
    Energized forms: intermittent;
    Unlocking time: 1S
    Continuously energized <10S;
    Temperature: -40 ~ +50
    Applications: Cabinet lock,locker locks,file cabinet locks ,luggage locks,electric locks,door locks,solenoid locks,drawer,newspaper boxes lock ,sauna lock,locker electromagnetic locks,electric locks,newspaper boxes,sauna electronics lock.

Για χρήση με Raspberry Pi, Arduino, ESP κλπ μπορεί να χρειαστεί να αποκτήσετε κατάλληλες μονάδες ρελέ.
Εδώ είναι οι συστάσεις μας:

https://nettop.gr/index.php/hlektronika/relay/1-channel-5v-relay-module-high-low-level-trigger.html

https://nettop.gr/index.php/hlektronika/relay/5v-1-channel-relay-board-module.html

https://nettop.gr/index.php/hlektronika/relay/1-channel-5v-relay-module-low-level-trigger.html

https://nettop.gr/index.php/hlektronika/relay/1-channel-infrared-remote-control-5v-relay-module-learning-ir-switch-module.html

https://nettop.gr/index.php/boards/wemos-esp32-esp8266/esp8266-esp-01-5v-wifi-relay-module.html

https://nettop.gr/index.php/raspberry-pi/pico/raspberry-pi-pico-accessories/dip-pi-pico-universal-case-advanced.html

Το κόκκινο καλώδιο συνδέεται στον θετικό ακροδέκτη και το μάυρο καλώδιο συνδέεται στον αρνητικό ακροδέκτη.
Η ενεργοποίηση του ρεύματος θα ξεκλειδώσει και η απενεργοποίησή του θα κλειδώσει τον μηχανισμό.
