1.3inch OLED Display Module for Raspberry Pi Pico, 64×128, SPI/I2C

Gallery Image 1

Gallery Image 2

Gallery Image 3

Gallery Image 4

Gallery Image 5

1.3inch OLED Display Module for Raspberry Pi Pico, 64×128, SPI/I2C

€22.00

Product Weight: 0.0200KG

Add To Wishlist Add To Compare

Product Details

SKU : 48-019376
Stock : Available

Guaranteed Safe Checkout

Raspberry Pi

Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

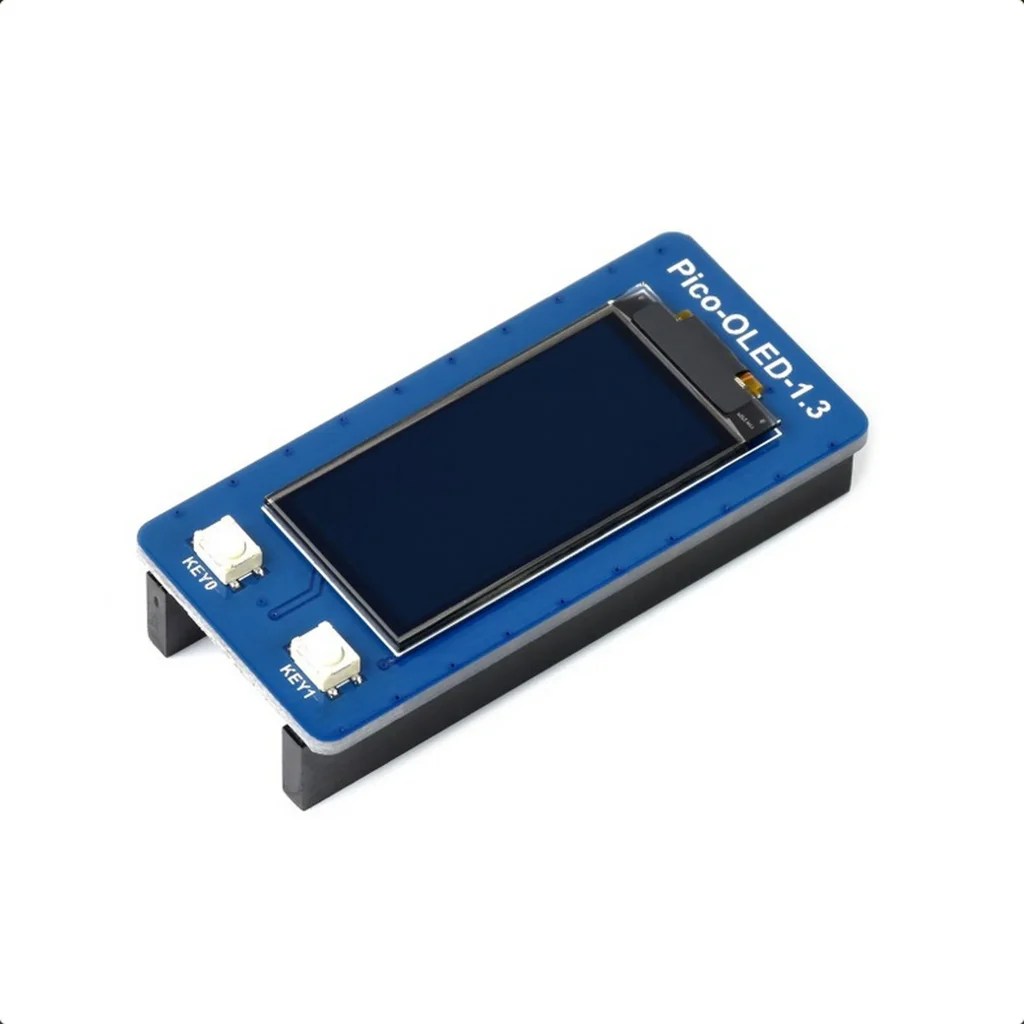

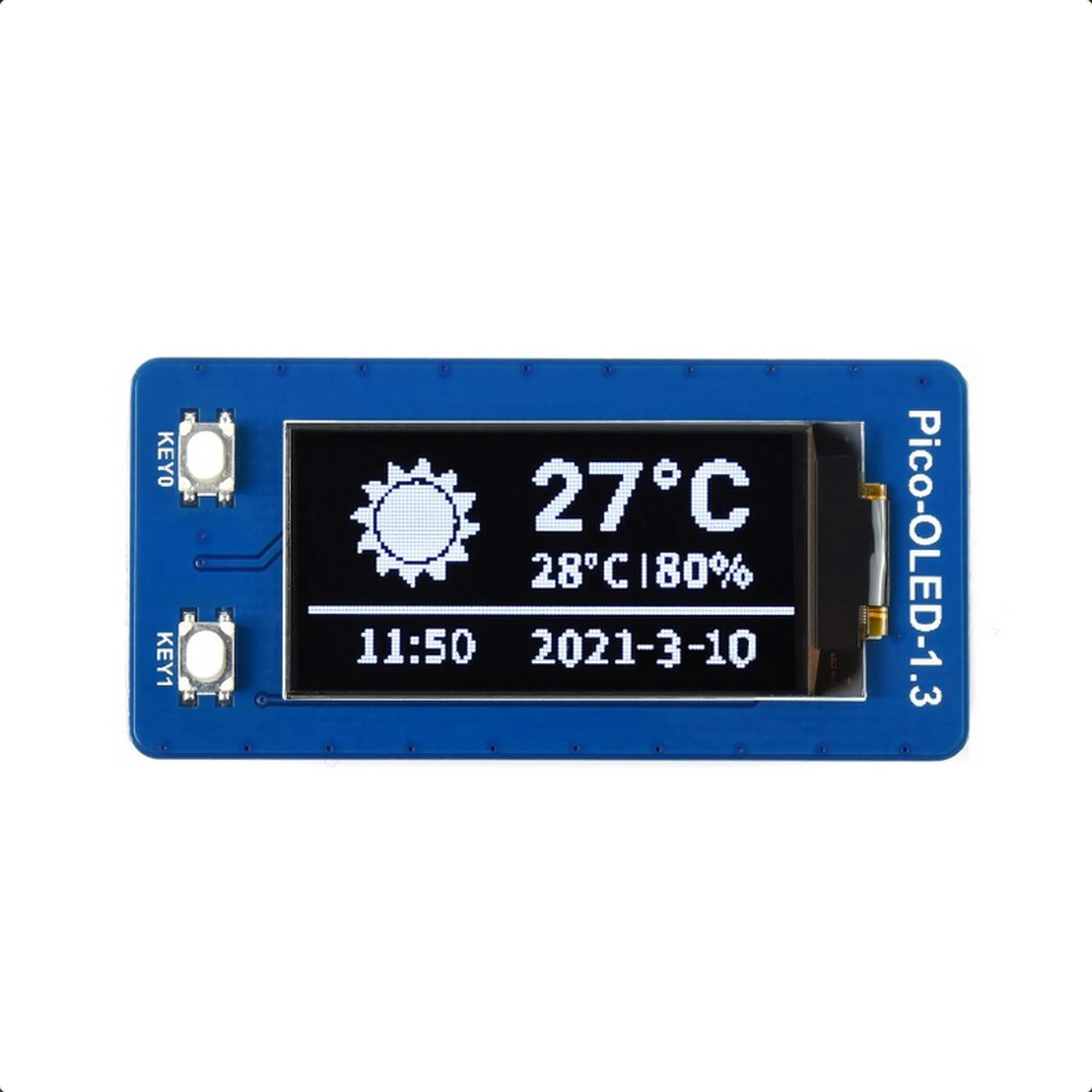

1.3″ OLED Display Module for Pico

embedded SH1107 driver, using SPI/I2C bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

Size1.3″
Resolution64×128
Display ColorBlack / White

InterfaceSPI/I2C
Display PanelOLED
DriverSH1107

Features at a glance

Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
2x user buttons for easy interacting
Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage	3.3V	Resolution	64×128 pixels
Communication Interface	4-wire SPI, I2C	Display size	14.70 × 29.42mm
Display Panel	OLED	Pixel size	0.15 × 0.15mm
Driver	SH1107	Dimensions	52.00 × 25.00mm

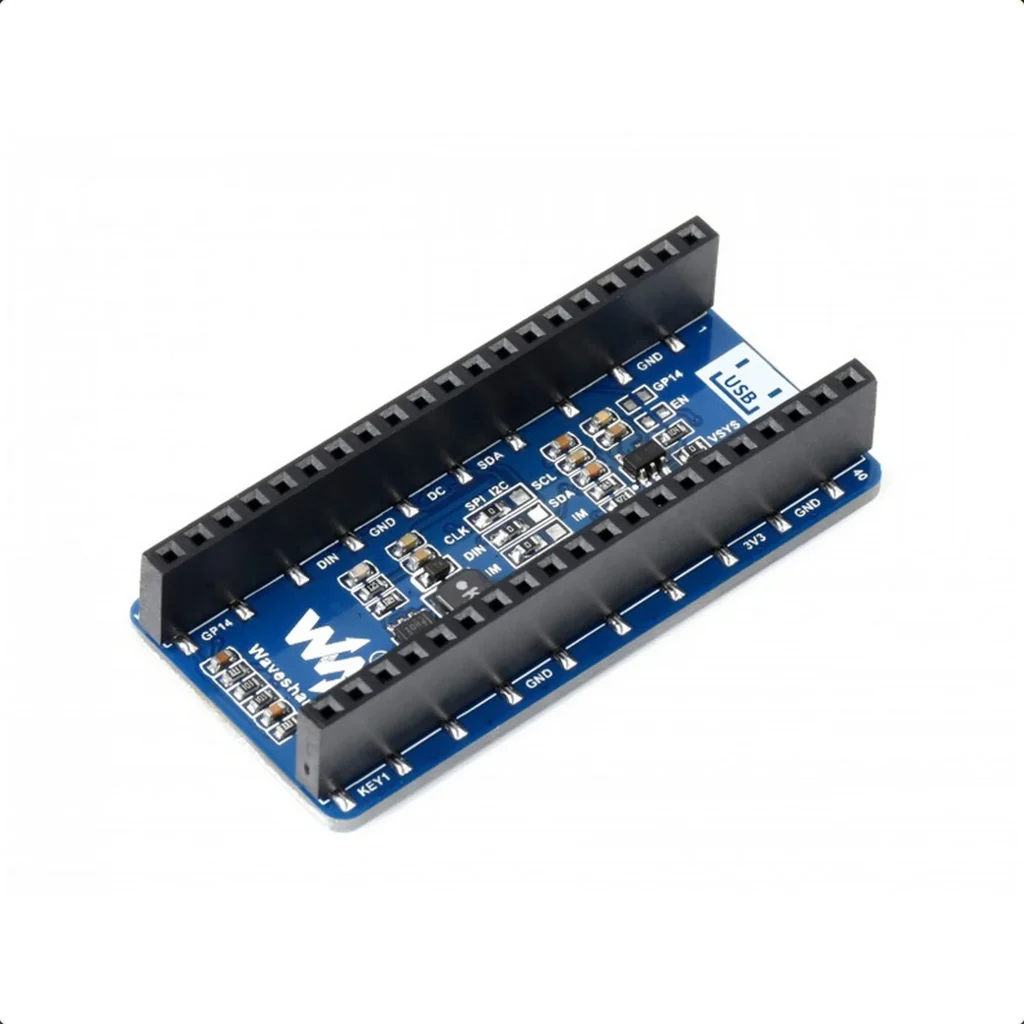

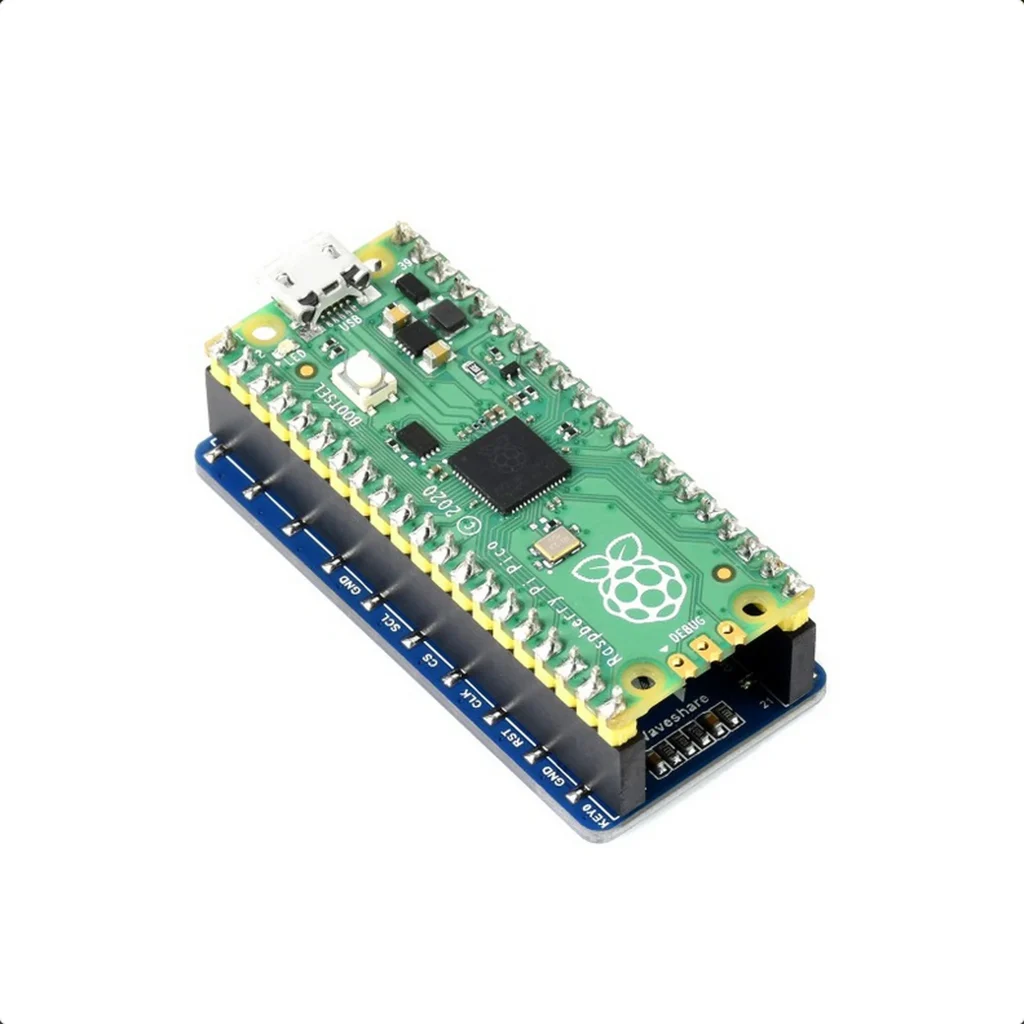

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico
2x user buttons for easy interacting

Raspberry Pi Pico is NOT included.

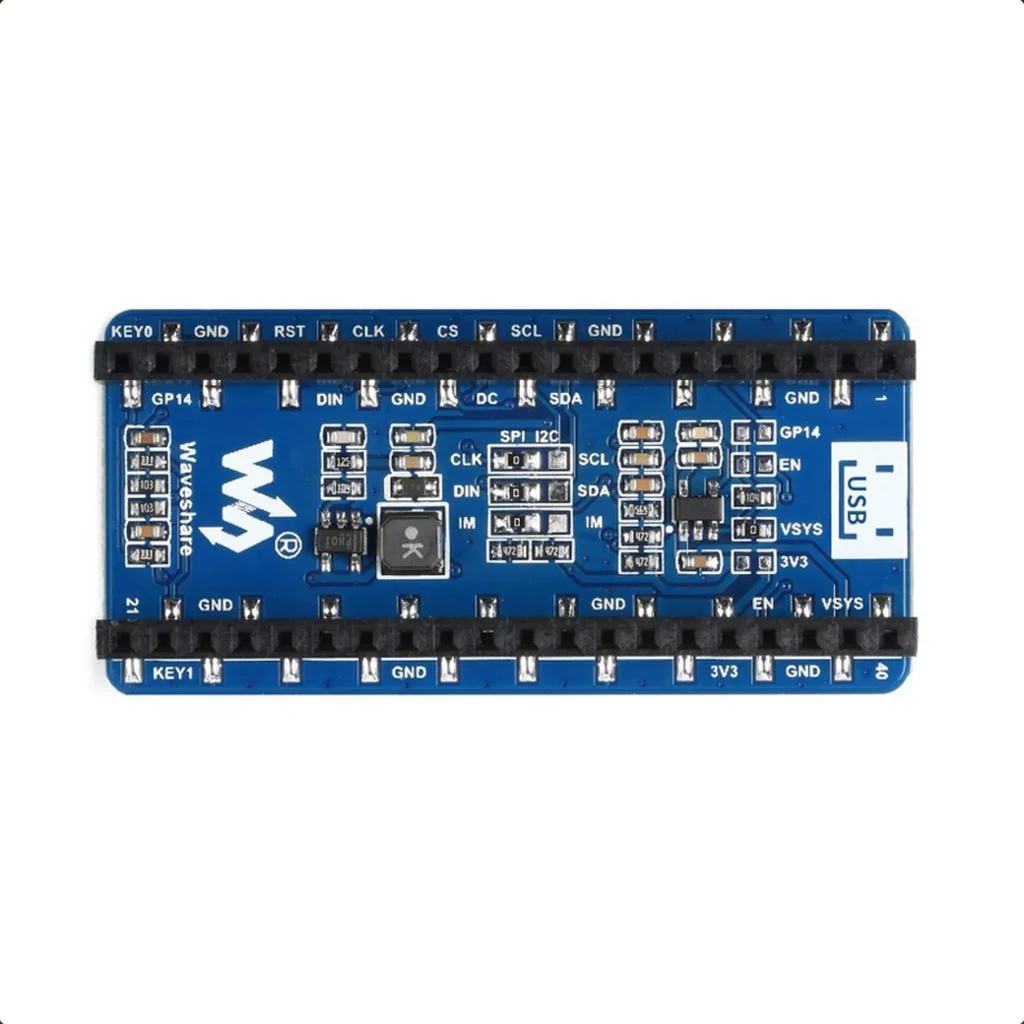

Pinout definition

Outline dimensions

Resources & Services

WIKI: Pico-OLED-1.3

Inches

• 1.3
