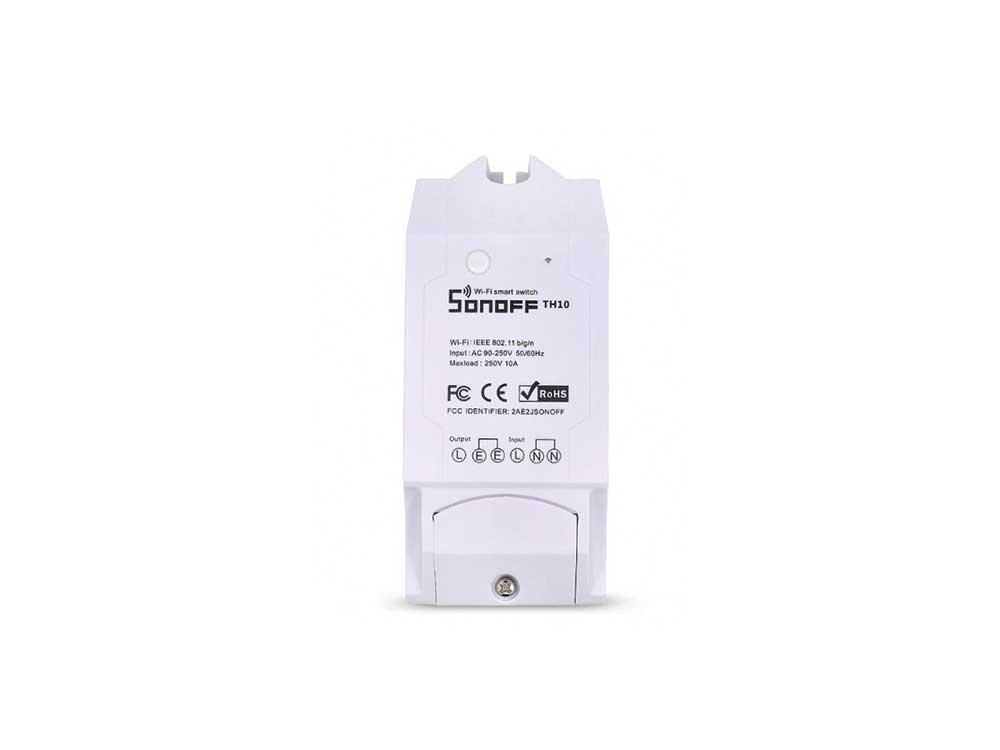

Sonoff TH10 is a wireless temperature and humidity monitoring switch which can remotely monitor and set temperature and humidity range to turn on/off connected appliances through the iOS/Android APP eWeLink. Just as the name indicates, the Sonoff TH temperature and humidity monitor device supports two maximum current supply specifications such as 10A.
Sonoff TH10 remote temperature monitor and wireless humidity monitor WiFi switch supports presetting the range for temperature or humidity. When the temperature or humidity of your home environment falls within the range, it will automatically turn on or off the connected devices.

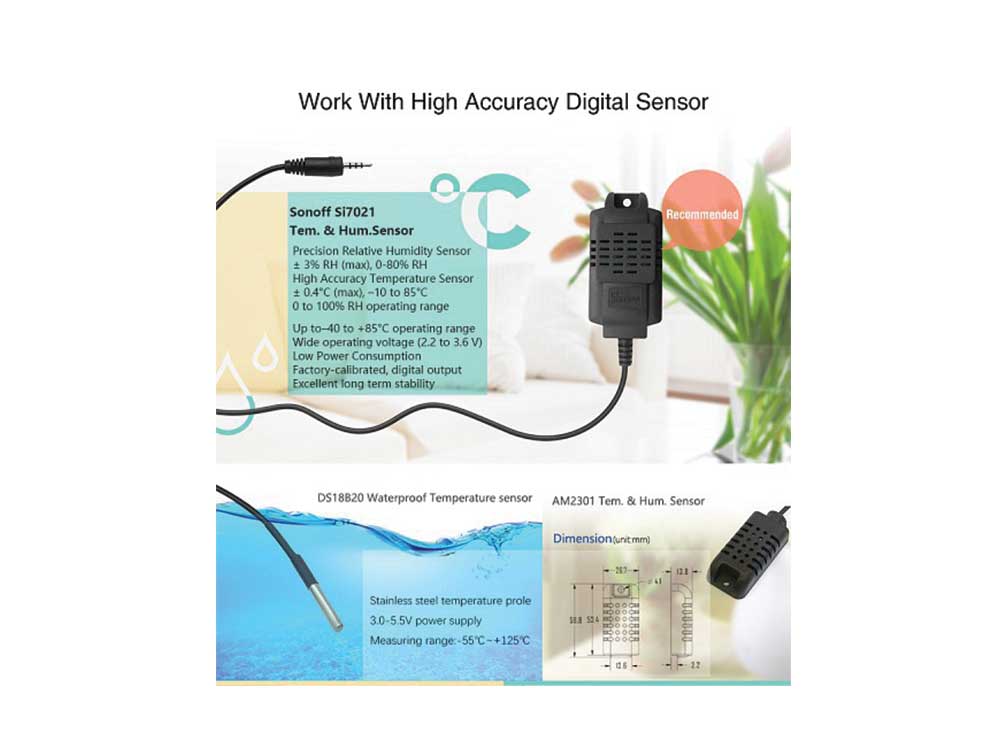

Sonoff TH10 supports four kinds of temperature monitor and humidity monitor sensors, mentioned below:
Si7021, AM2301, DS18B20, DHT11
Si7021(wiki) Highly Recommended!
Note: the sensors are not included in the package of Sonoff TH10
The sensor should be plugged into the smart switch before power-on. It is not advised to plug or unplug the sensor after power-on. DS18B20 is waterproof, which can only measure temperature. Other sensors can measure both temperature and humdity.

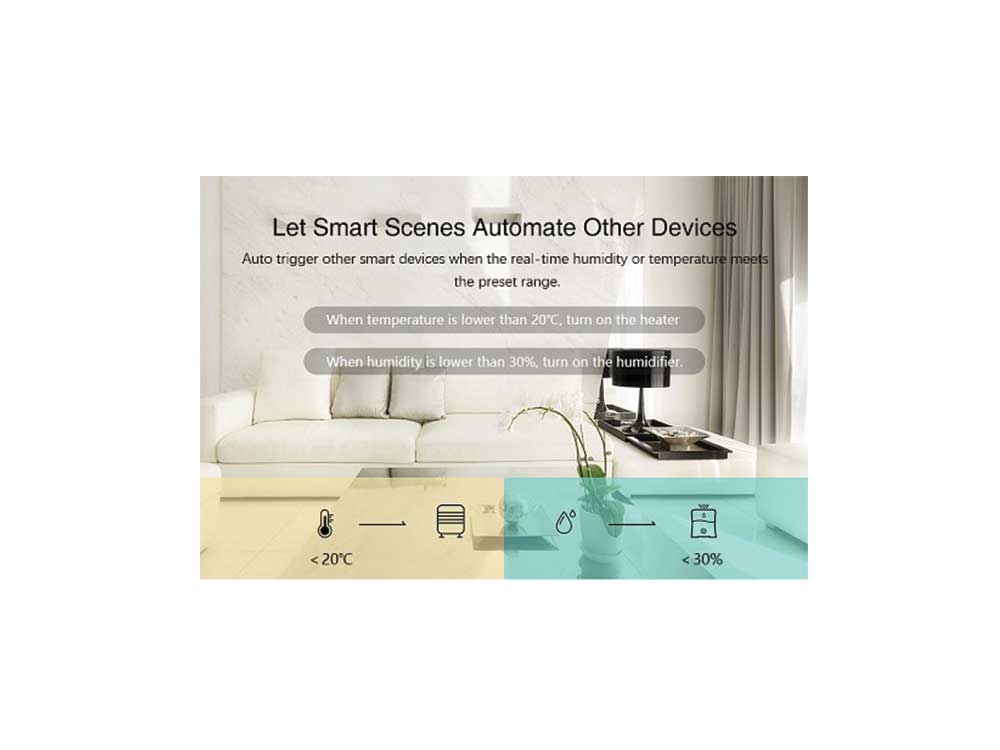

With the eWeLink app, users can create simple conditional statement (Smart Scene) to trigger on/off other smart devices. This means users can use Sonoff TH10 or Sonoff TH16 with Si7021, AM2301, DS18B20 or DHT11 sensor to detect temperature/humidity, and then set specified temp. or hum. ranges as conditions to trigger on/off other smart devices in the same account, such as Sonoff Basic, Sonoff RF, Sonoff SV, S20. This device works perfectly with electric fan, air conditioner, humidifier, smart fish tank, watering system, etc
Features
- Supports tracking device status
- Supports remote turn on/off connected appliance

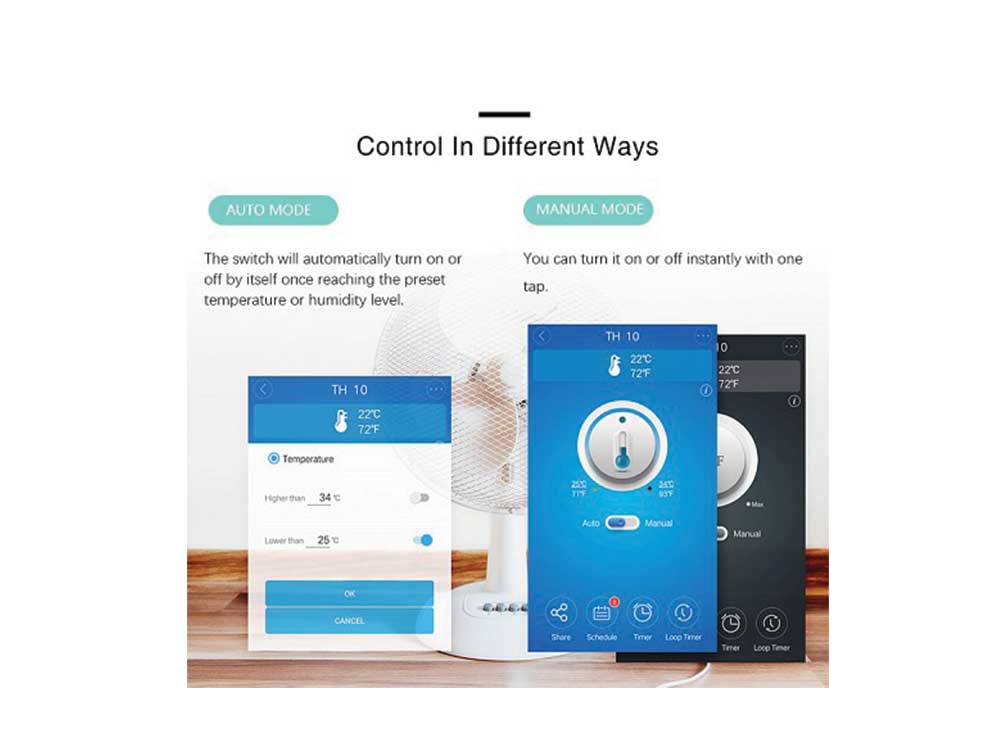

- Supports presetting temperature and humidity to turn on/off
- Supports 8 enabled countdown/single/repeat timing tasks
- Support checking real-time temperature and humidity
- Support setting smart scene to trigger on/off other smart devices
- Works with Amazon Echo, Echo Dot, Amazon Tap
- Works with Google Home, Google Home Mini, Google Nest
- Works with IFTTT
Details
- Input voltage: 90~ 250V AC
- Input current: Max 10A
- Max. Power: 2200W(10A)
- Humidity: 5%-90%RH, Non-condensing
- Operating Temperature: 0ºC-40ºC(32°F-104°F)
- Wireless Standard: 802.11 b/g/n
- Security Mechanism: WPA-PSK/WPA2-PSK
- Enclosure Material: Fire-retardant ABS V0
- Dimension: 114*51*32 (mm)
- Supported temperature, humidity sensors: Si7021, AM2301, DS18B20, DHT11
- Gang: 1
- Certification: CE, RoHS, FCC
- UPC (for Sonoff TH10): 6920075700947
- UPC (for Sonoff TH16): 6920075700954
- Si7021 Sensor
- Temperature Measuring Range: –40°C~+85°C
- Humidity Measuring Range: 0~100%RH
- Storage Temp.: –65°C~+150°C
- Operating Voltage: 2.2-3.6V
- Weight: 26g
- Length: 0.5m
- AM2301 Sensor
- Temperature Measuring Range: -40°C~+80°C
- Humidity Measuring Range: 0~99.9%RH
- Power Supply: 3.3-5.2V DC (5V recommended)
- Temperature Sensor Type: Resistive
- Humidity Sensor type: Capacitive
- Weight: 22g
- Length: 0.5m
- DS18B20 Sensor
- Type: Waterproof temperature sensor
- Probe: Stainless steel temperature probe
- Temperature Measuring Range: -55°C~+125°C
- Power Supply: 3.0-5.5V
- Weight: 26g
